• Country
• Japan

• Manufacturer / Brand
• Icom, Inoue Communication Equipment Corp.; Osaka

• Year
• 1989

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 73626

• • alternative name: INOUE COMM. E. CORP

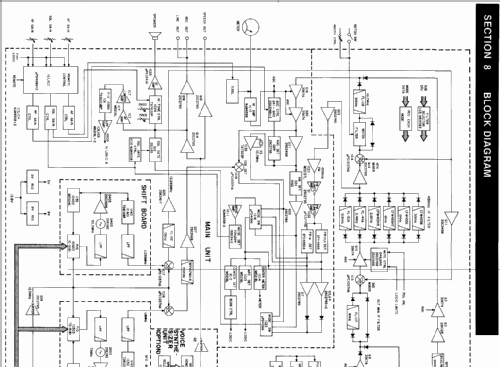

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 778700/10700/455 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220-240 / 13.8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: IC-R9000E - Icom, Inoue Communication

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 424 x 150 x 365 mm / 16.7 x 5.9 x 14.4 inch

• Notes
• ICOM Communications-Receiver IC-R9000E.
  Coverage 0.1 to 2000 MHz; Modes: AM, FM, WFM, SSB, CW, FSK; 1000 memories; CRT-Display.
  Same as model IC-R9000L, but with CRT instaed LCD.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 18,000.00 DM

• Source of data
• -- Original-techn. papers.

• Mentioned in
• FA 6/09

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
