• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 8998
    • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 128,5 kHz; Reflex
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Visual Tuning Indicator pre Eye
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

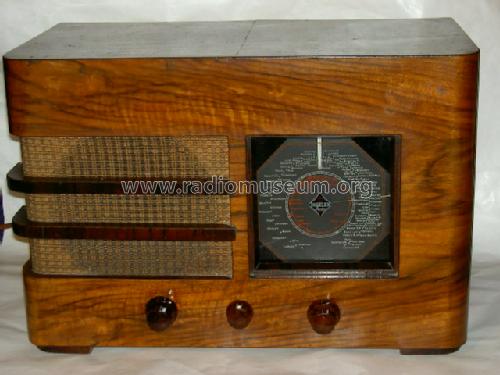

  • Model: Columbus W [Stiftröhren] - Ingelen, Elektrotechnische
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 430 x 290 x 240 mm / 16.9 x 11.4 x 9.4 inch
  • Notes
  • Abstimmanzeige mit Drehspul-Messinstrument. Die ZF-Stufe (AF7) arbeitet in Reflexschaltung als 1. NF-Stufe.

    Alternativ können gemäss Rückwand die entsprechenden Sator Röhrentypen (NMO46, NSS43, NDD40, P43 und VG410) gesteckt sein.

    Siehe auch Ingelen Columbus W mit Topfsockel-Röhren (P8A)

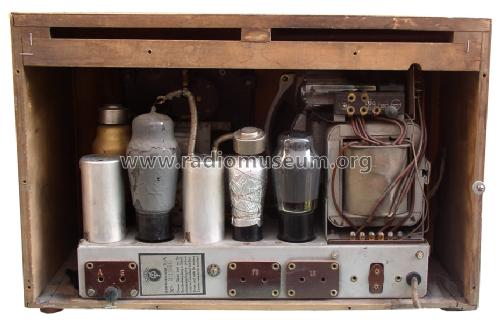

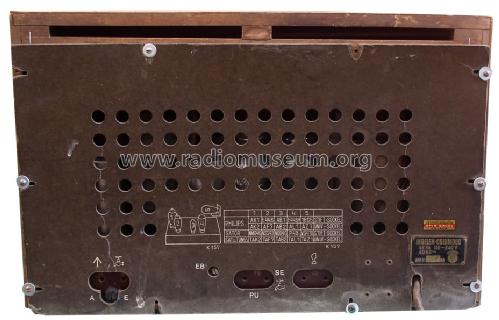

    Siehe auch Exportgerät Columbus 35 36W.

  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
