121A

121A; Isis Radio; (ID = 533608) Radio 121A; Isis Radio; (ID = 533615) Radio
121A; Isis Radio; (ID = 533619) Radio 121A; Isis Radio; (ID = 533610) Radio
121A; Isis Radio; (ID = 533611) Radio 121A; Isis Radio; (ID = 533613) Radio
121A; Isis Radio; (ID = 533614) Radio 121A; Isis Radio; (ID = 533616) Radio
121A; Isis Radio; (ID = 533618) Radio
Use red slider bar for more.
121A; Isis Radio; (ID = 533608) Radio
Isis Radio;: 121A [Radio] ID = 533608 548x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 121A, Isis Radio; Charleroi:
Restaurietes Gerät mit schoenem Gehaeuse

Country:  Belgium
Manufacturer / Brand:  Isis Radio; Charleroi
Year: 1935 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 58 2A7 2B7 47 80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (MW) and Long Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 121A - Isis Radio; Charleroi
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 410 x 500 x 267 mm / 16.1 x 19.7 x 10.5 inch

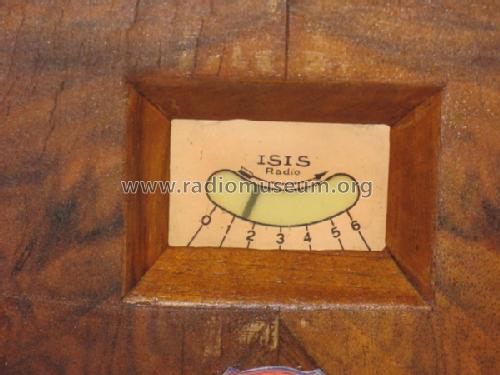

Notes Abstimmzeiger mit Lichtschlitz,
Mittenabstimmung mit Instrument an der Frontseite.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)

Model page created by Hartmut Daniels † 22.11.16. See "Data change" for further contributors.



All listed radios etc. from Isis Radio; Charleroi
Here you find 41 models, 40 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
