Studio Ultracolor 2700
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1973/1974
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 128588
Weiler Katalog 1973

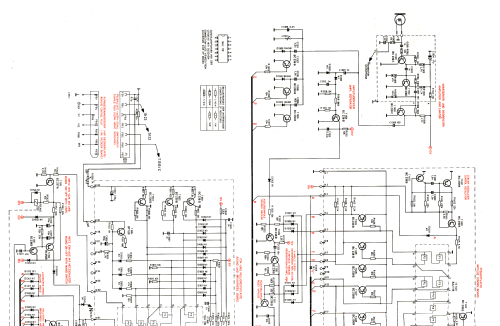

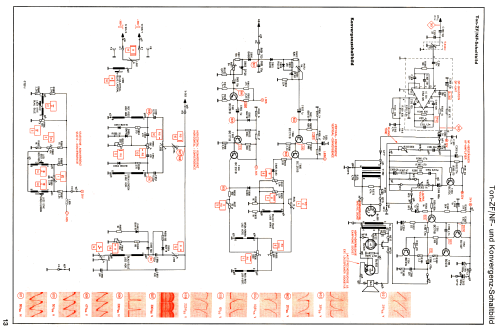

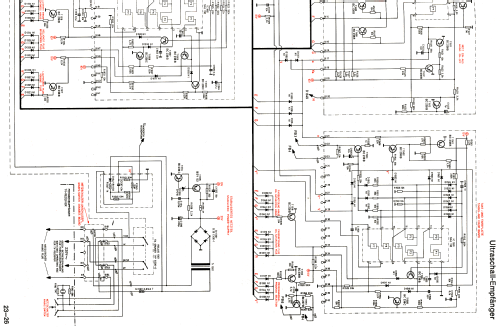

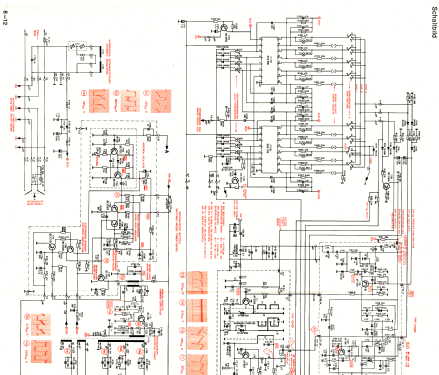

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A66-140X
- Number of Transistors
- 138
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Studio Ultracolor 2700 - ITT Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 760 x 510 x 455 mm / 29.9 x 20.1 x 17.9 inch
- Notes

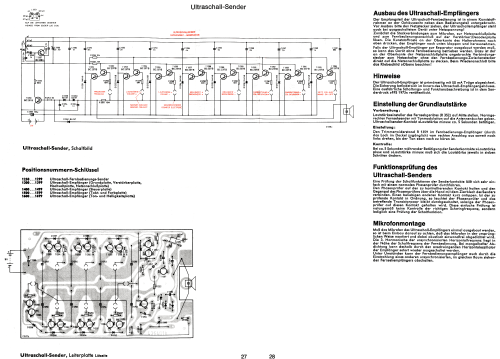

- 66 cm Farbfernseh-Tischgerät, 6 IC, 207 Dioden, Hochspannungskaskade, VHF/UHF-Tuner, beleuchtete Programmanzeige, Fernbedienung UFB 1.
Gehäusevarianten: Schleiflack weiss, grün/weiss, rot/weiss und schwarz/silber.
- Net weight (2.2 lb = 1 kg)
- 39.5 kg / 87 lb 0.1 oz (87.004 lb)
- Mentioned in
- -- Original-techn. papers. (Weiler Angebot 1973/74)
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
