• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1980 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208589

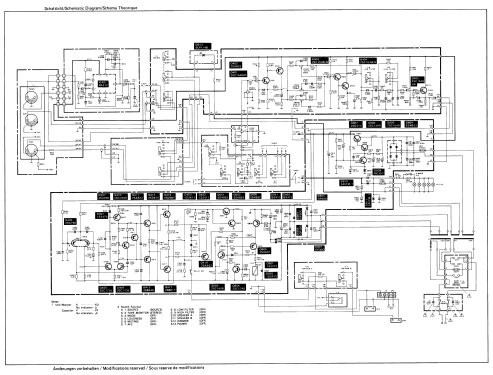

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 52 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Tuner/Amplifier HiFi 8032 - ITT Schaub-Lorenz

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 480 x 130 x 350 mm / 18.9 x 5.1 x 13.8 inch

• Notes
• 4 Band Stereo Receiver mit 2x 26 Watt Sinus an 8 Ohm, Klirrfaktor 0,05%, 20 - 30.000Hz.
  UKW-Teil: 97,5 - 108 MHz
  AM-Teil: LW 145 - 355kHz, MW 510 - 1620 kHz, KW 5,8 - 16,2 MHz.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
