• Year
  • 1971
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 244980

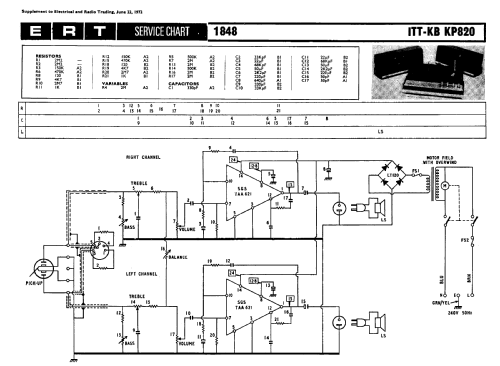

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 3 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: KP820 - ITT-KB; Foots Cray, Kent; ITT
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 342 x 166 x 285 mm / 13.5 x 6.5 x 11.2 inch
  • Notes

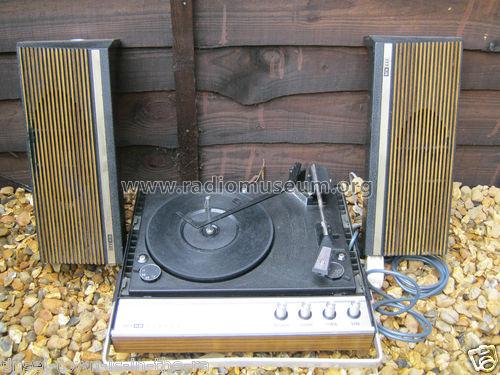

  • Detachable speakers.

    This stereo record player uses 2 x SGS TAA621 integrated circuit amplifiers

    Record deck is the BSR C136 with a BSR SX6M cartridge and ST12 sapphire stylus

    External speakers, 15 ohm minimum.
