Halbautomatische Taste FME-33

Jablonsky; Berlin (Ostd.)

  • Year
  • 1958 ??
  • Category
  • Morse-Equipment & TTY, RTTY, TDD etc.
  • Radiomuseum.org ID
  • 190778

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Halbautomatische Taste FME-33 - Jablonsky; Berlin Ostd.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 78 x 55 x 194 mm / 3.1 x 2.2 x 7.6 inch
  • Notes

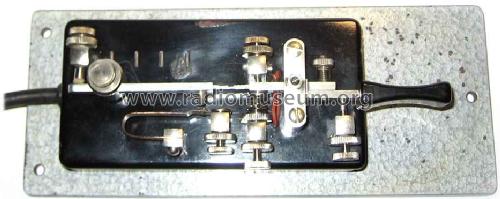

  • Halbautomatische Taste der Fa. Jablonsky FME 33.
    Das Blechgehäuse beherbergt als Funkentstörglied eine RC-Kombination (100 Ω/20 nF). Vier Eichstriche dienen der Einstellung des Schwinggewichts. Die mechanischen Teile sind auf einer schwarz lackierten Pertinax-Platte (58×117 mm) montiert.
  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Mentioned in
  • Gregor Ulsamer "Faszination Morsetasten"
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
