VR-5525LX

VR-5525LX; JVC - Victor Company (ID = 632268) Radio VR-5525LX; JVC - Victor Company (ID = 632262) Radio

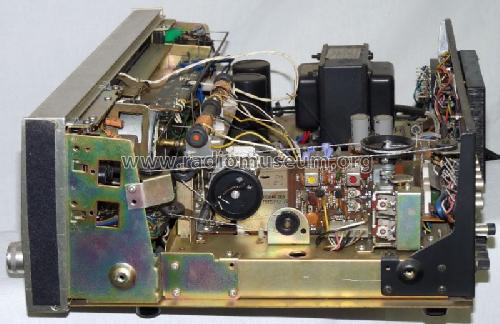

VR-5525LX; JVC - Victor Company (ID = 632266) Radio VR-5525LX; JVC - Victor Company (ID = 632263) Radio

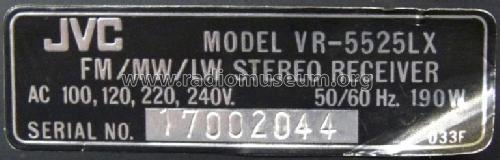

VR-5525LX; JVC - Victor Company (ID = 632264) Radio VR-5525LX; JVC - Victor Company (ID = 632267) Radio
Use red slider bar for more.
VR-5525LX; JVC - Victor Company (ID = 632268) Radio
JVC - Victor Company: VR-5525LX [Radio] ID = 632268 933x629
Select picture or schematic to display from thumbnails on the right and click for download.
For model VR-5525LX, JVC - Victor Company of Japan, Ltd.; Yokohama

Country:  Japan
Manufacturer / Brand:  JVC - Victor Company of Japan, Ltd.; Yokohama
Year: 1978 ? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM.
Details
Power type and voltage Alternating Current supply (AC) / 100; 120; 200; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: VR-5525LX - JVC - Victor Company of Japan,
Material Wooden case
Dimensions (WHD) 441 x 160 x 350 mm / 17.4 x 6.3 x 13.8 inch
Notes Hifi-AM/FM Stereo-Receiver, UML,(4-Kanal-vorbereitet), Sound Effect-Amplifier (USA-Patent No.3566294), 2 Lautsprecherausgänge 8-16 Ohm schaltbar 2x 50Watt an 8Ohm/sinus-Dauertonleistung, Anschlußmöglichkeit eines 4-Kanal Zusatzverstärkers oder S.E.A Klangregeleinheit über die Buchsen PRE/Main, Eingänge: Phono/ Aux1/ Aux2/ Tape, 1 geschaltener Netzausgang (max.100 Watt) und 1 ungeschaltener (max.100 Watt) für den Anschluß von Systemkomponenten, Buchse FM-DET-out an der Rückseite, die eingebaute Mikrofon Mischeinrichtung kann entweder nur zur Mikrofon- Wiedergabe oder zum Einspielen von Mikrofonwiedergabe in jede beliebige Programmquelle verwendet werden.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Peter Roggenhofer. See "Data change" for further contributors.
