• Country
• Germany

• Manufacturer / Brand
• Hanseatic ,(Marke)

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225538

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EAM86 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 117; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

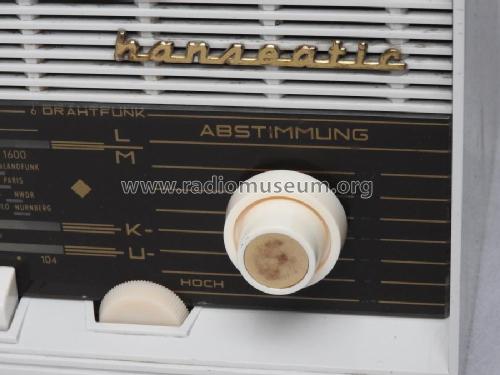

• Model: Hanseatic Ch= Kaiser 2320 - Hanseatic ,Marke

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 385 x 180 x 180 mm / 15.2 x 7.1 x 7.1 inch

• Notes

• Fertigung für Otto-Versand Hamburg (Marke Hanseatic).
  Siehe auch Kaiser W 2320

  UKW 87,6 bis 104 MHz. Neben dem permanentdynamischen Lautsprecher ist auch ein elektrostatischer Lautsprecher angeschlossen.

  Das Gerät ist auch für Drahtfunkempfang eingerichtet
