440 (440 GW)
ID = 9475
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

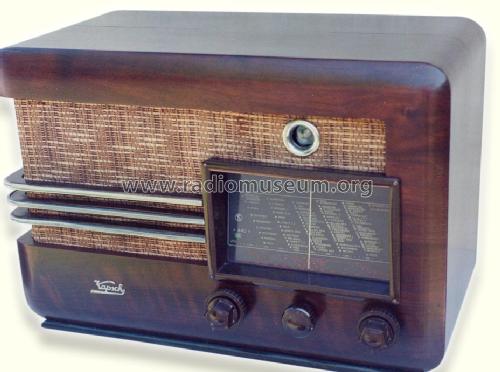

Kapsch, Telephon- : 440 [Radio] ID = 57788 928x691
| Country: Austria | Manufacturer/Brand: Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne... |
| Year: 1939 / 1940 | Type: Radio or Tuner |
| Valves / Tubes | 5: ECH11 EBF11 UCL11 CY1 EM11 |
|---|
| Principle | Super-Heterodyne (Super in general); IF-Freq. 129 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s); |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Power type and voltage | AC/DC-set / 110-240 Volt |
| Loudspeaker/pwr.out | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| from Radiomuseum.org | Model: 440 |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 465 x 387 x 278 mm / 18.3 x 15.2 x 10.9 inch |
| Notes | Eisen-Urdox EU VI für 180-240V oder EU XX für 90-160V |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
All listed radios etc. from Kapsch, Telephon- und Telegraphenfabriks-AG Kapsch & Söhne; Wien
Here you find 525 models, 396 with images and 319 with schematics.
Collection of Wolfgang Bauer (A)
Collection of Alois Steiner (A)
