• Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 9476

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 129,5 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

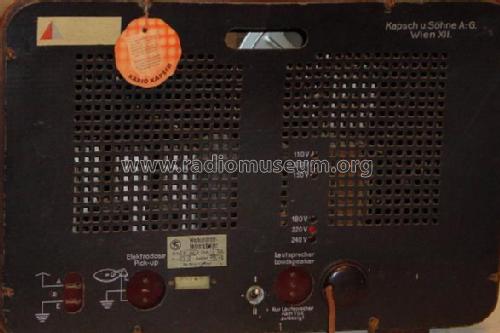

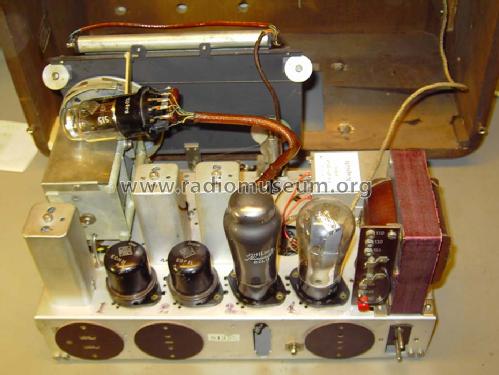

  • Model: 440-W - Kapsch & Söhne KS, Telephon-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 465 x 387 x 278 mm / 18.3 x 15.2 x 10.9 inch
  • Notes
  • Variable Bandbreite
  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
