Portable Radio TR8N

• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165603

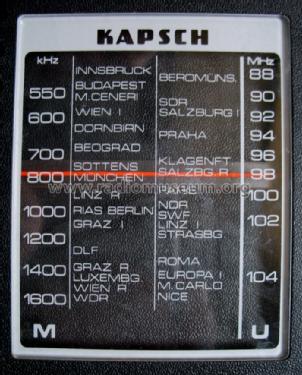

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Portable Radio TR8N - Kapsch & Söhne KS, Telephon-

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 218 x 112 x 47 mm / 8.6 x 4.4 x 1.9 inch

• Net weight (2.2 lb = 1 kg)
• 0.685 kg / 1 lb 8.1 oz (1.509 lb)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
