Radio-Kassettenrecorder KR310

• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81133

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio-Kassettenrecorder KR310 - Kapsch & Söhne KS, Telephon-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 210 x 82 mm / 12.2 x 8.3 x 3.2 inch

• Notes
• On the top: 5 buttons for the recorder (no pause button), tone and volume controls, separated switch for radio.
  On the side: AC and 6V DC plugs, MIC + REM; REC/PB switch; single switch for monitor (OFF-L-H) and mic (ON-OFF).
  Made in Japan.

  Superiormente: cinque tasti di funzione del registratore, senza la pausa; controlli a slitta per volume e tono; interruttore radio on-off separato.
  Sui lati: prese AC e DC 6 V; MIC + REM; REC/PB presa 5 poli DIN; selettore unico monitor (posizioni OFF-L-H) / microfono (posizioni OFF-ON).

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Price in first year of sale
• 2,590.00 ÖS

• Source of data

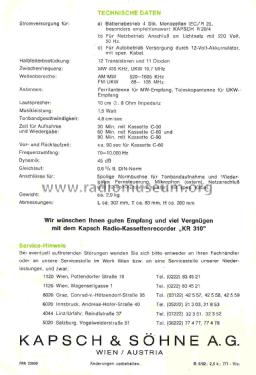

• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
