• Year
  • 1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 74882
    • alternative name: Banga - Lithuania TV sets industrial union

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 127/220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Minija - Kauno Radijo Gamykla KRG,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 622 x 435 x 375 mm / 24.5 x 17.1 x 14.8 inch
  • Notes
  • Tape-recorder block "Elfa-21" or "Elfa-25" produced in ELFA Elektrotechnical Works, Vilnius (LT).
  • Net weight (2.2 lb = 1 kg)
  • 25 kg / 55 lb 1.1 oz (55.066 lb)
  • Mentioned in

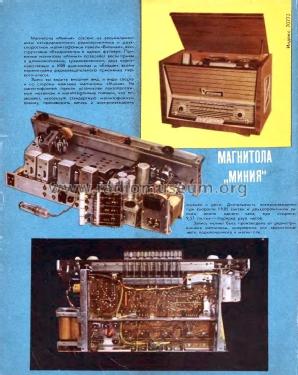

  • Past Soviet Union magazine "RADIO", Nr.3 - 1965
  • Author
  • Model page created by Sigitas Zilionis. See "Data change" for further contributors.
