Telewatt Stereo-Nova VS-71 M ECC83

Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266265) Ampl/Mixer

Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266266) Ampl/Mixer

Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266267) Ampl/Mixer

Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266268) Ampl/Mixer

Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266269) Ampl/Mixer

Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266270) Ampl/Mixer

Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266271) Ampl/Mixer

Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266272) Ampl/Mixer
Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266261) Ampl/Mixer
Use red slider bar for more.
Telewatt Stereo-Nova VS-71 M; Klein & Hummel; (ID = 1266261) Ampl/Mixer

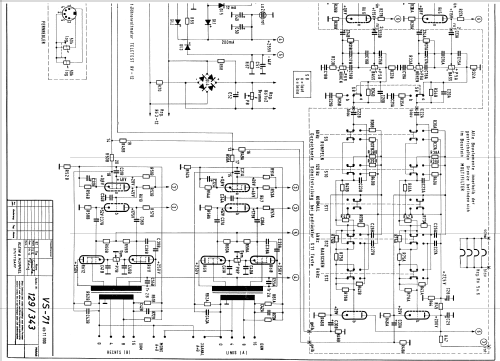

Klein & Hummel;: Telewatt Stereo-Nova VS-71 M [Ampl/Mixer] ID = 1266261 933x939
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telewatt Stereo-Nova VS-71 M ECC83, Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt):
Titelbild der orig. Bedienungsanweisung des VS-71 mit ECC83 in den Vorstufen

Country:  Germany
Manufacturer / Brand:  Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt)
Brand

Schwabenradio
Year: 1962 Type: Audio Amplifier or -mixer
Valves / Tubes 12: ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 ECF80 ECF80 EL500 EL500 EL500 EL500
Semiconductors (the count is only for transistors) SSi1 SSi1 OA81 Tr.Gl.=Metal-rectif.
Principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220; 245 Volt
Loudspeaker - This model requires external speaker(s).
Power out 70 W (unknown quality)
from Radiomuseum.org Model: Telewatt Stereo-Nova VS-71 M [ECC83] - Klein & Hummel; Stuttgart-
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 120 x 290 mm / 17.7 x 4.7 x 11.4 inch
Notes Klein + Hummel High-Fidelity Stereo-Mono 90/70 Watt Verstärker VS-71 M;
Erste Ausgabe des Verstärkers VS-71, in den Vorstufen nur mit ECC83 bestückt.
Spätere Versionen des VS-71 (M + H) haben ECC808 in den Vorstufen.
Eingänge für Mikrofon, Phono (Magnet mit umschaltbarer Entzerrung CCIR und RIAA, Kristall), Band, Radio 1 und Radio 2 (Hochpegel-Eingänge).
Ausgangsleistung 2x 35 W an 4, 8 oder 16 Ohm.
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 1,200.00 DM
Mentioned in HiFi-Jahrbuch 1 S. 110, Verlag G. Braun Karlsruhe, 1963

Model page created by Bernhard Nagel. See "Data change" for further contributors.
