• Country
• Germany

• Manufacturer / Brand
• Echolette (Marke / brand); München

• Year
• 1975

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 107728

• • Brand: Klemt-Echolette

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 50

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Other Recorder/Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 160 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Echolette SE300A - Echolette Marke / brand;

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 430 x 215 x 460 mm / 16.9 x 8.5 x 18.1 inch

• Notes

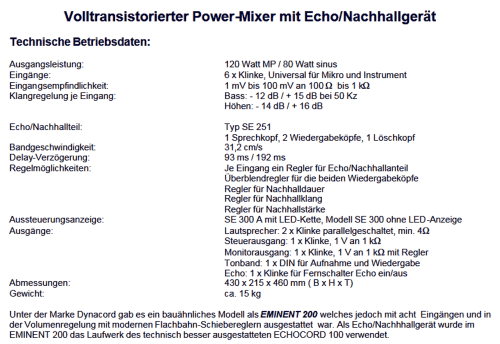

• 6-Kanal Power-Mixer mit Bandecho. Aussteuerungsanzeige über LED Kette. 4 Tonköpfe, Endlosbandschleife 510 mm.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
