• Country
• United States of America (USA)

• Manufacturer / Brand
• Kolster; USA

• Year
• 1926/1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 45617

• • Brand: International

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A UX112 or UX171A

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org

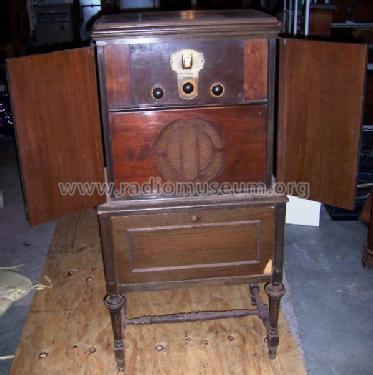

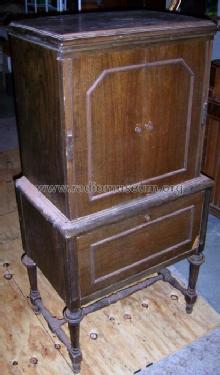

• Model: 6-G - Kolster; USA

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 26 x 50 x 17 inch / 660 x 1270 x 432 mm

• Notes

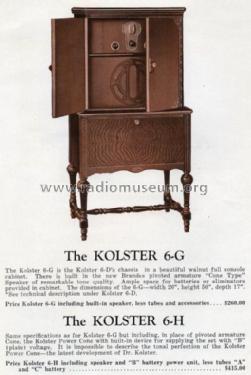

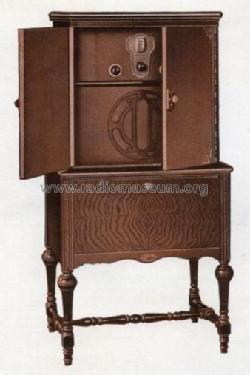

• The 1927 Kolster Radio catalog 1927 features model 6G (without the dash) for $185 with a cone loudspeaker. The Wilkinson-Kompass 1927 catalogue has the same model for $260.00 less tubes and accessories.

  It has one dial (primary tuning control knob). The power tubes mentioned in Riders are not necessarily the original types, but reasonable replacements for service. The model uses chassis 6-D.

• Price in first year of sale
• 185.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Wilkinson-Kompass of Hamilton Ltd Catalog
