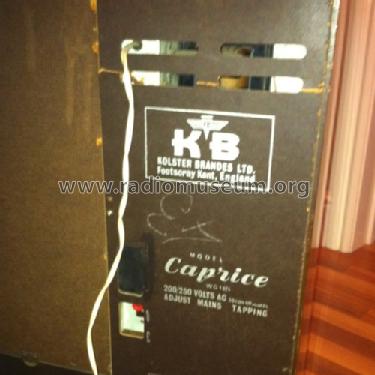

Caprice WG10S

Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

Data
Forum
Pictures
Collections

  • Year
  • 1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 174392

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Caprice WG10S - Kolster Brandes Ltd. KB, K.B.,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 26.25 x 28.75 x 9.75 inch / 667 x 730 x 248 mm
  • Notes

  • Mono Radiogram fitted with BSR type UA14M four-speed record changer in a french walnut veneer wooden cabinet. SW 16.6-50m. Elliptical loudspeaker 9 x 5 inches. The same chassis is used in the Regentone ARG22 radiogram.

    Similar in apperance to the KB WG10 but with the addition of SW band.

  • Net weight (2.2 lb = 1 kg)
  • 35 lb 12 oz (35.75 lb) / 16.231 kg
  • Source of data

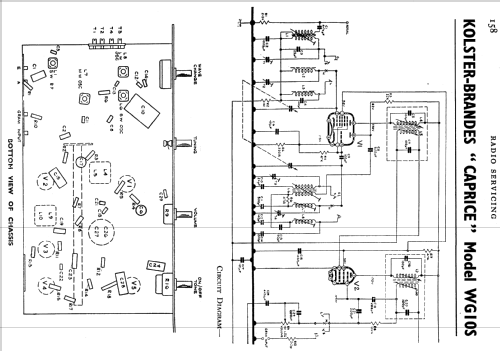

  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book

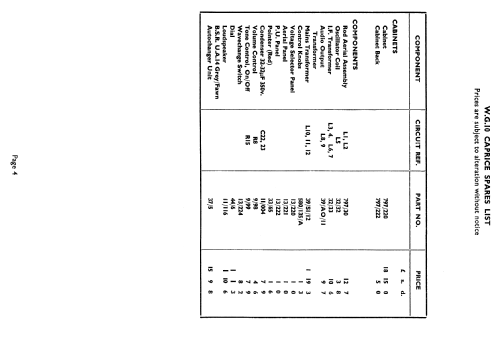

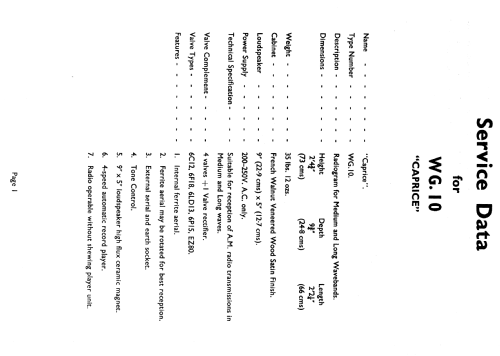

  • Literature/Schematics (1)
  • - - Manufacturers Literature (KB Service Manual dated August 1963)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (CRTS Service manual for KB WG10S and Regentone ARG22 dated December 1963)
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
