• Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 104647

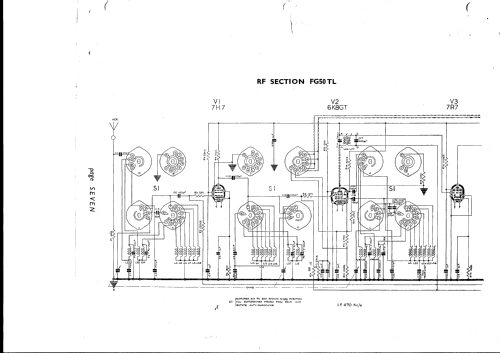

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-130; 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Power out
  • 10 W (unknown quality)
  • from Radiomuseum.org
  • Model: FG50 - Kolster Brandes Ltd. KB, K.B.,
  • Notes
  • Wavebands;
    LW 810-2200m (370-135kHz); MW 188-560m (535-1600 kHz); 49m band (5.9-6.3 MHz); 31m band (9.4-9.8 MHz); 25m band (11.6-12.1 MHz); 19m Band (15.0-15.7 MHz); 16m band (17.4-18.2 MHz); 13m band (21.2-22.1 MHz)



    see also FG50TL

  • Price in first year of sale
  • 110.00 GBP
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
