• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104749

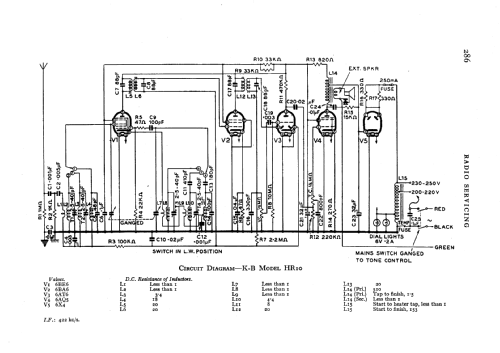

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AT6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 422 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: HR10 - Kolster Brandes Ltd. KB, K.B.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 327 x 175 mm / 18.9 x 12.9 x 6.9 inch

• Notes

• Mains auto transformer so "live" chassis.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1081)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
