Novum 1047 Export

ID = 136644

Image ID = 495890 for Körting-Radio; Novum 1047

Körting-Radio; : Novum 1047 [Radio] ID = 495890 800x645

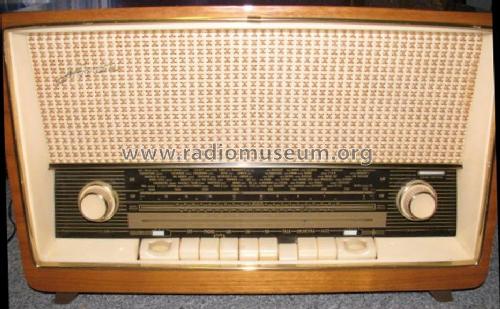

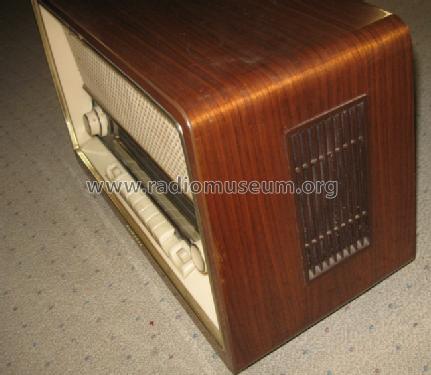

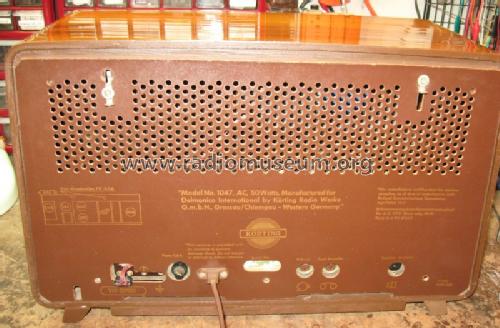

Delmonico made by Korting, Front

Country: Germany	Manufacturer/Brand: Körting-Radio; Leipzig, später Grassau
Year: 1955 ??	Type: Radio or Tuner
Valves / Tubes	6: 6AQ8 6AJ8 6DC8 6GW8 6FG6 6V4
schematic requested

Principle	Super-Heterodyne (Super in general)
Wave bands	Broadcast, Short Wave plus FM.
Power type and voltage	Alternating Current supply (AC) / 117 Volt
Loudspeaker/pwr.out	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15.2 cm = 6 inch
from Radiomuseum.org	Model: Novum 1047 [Export]
Material	Wooden case
Shape	Tablemodel with Push Buttons.
Dimensions (WHD)	20.25 x 12.75 x 9.75 inch / 514 x 324 x 248 mm
Notes	Körting-Korting 1047; Made for Delmonico International (US), FM up to 108 MHz, SW: ~6 - 18 MHz, bass & treble control, equalizer buttons, 50 W power consumption.

This model was suggested by Paul Pinyot.

All listed radios etc. from Körting-Radio; Leipzig, später Grassau
Here you find 467 models, 350 with images and 236 with schematics.

Collection of Paul Pinyot (USA)

Forum contributions about this model
Körting-Radio; : Novum 1047
Threads: 1 | Posts: 10

Hits: 751 Replies: 0 korting: 1047; Novum
Paul Pinyot 22.May.09	1 korting: 1047; Novum Gentlemen, I have a Korting 1047 Delmonico in for restoration. There is a small ferrite slug that moves with the FM band. I need to know: 1) How the dial cord is attached to the shaft of the variable capacitor? 1a) There is a little coil spring (12 x 3 mm) that has been included with this radio. Does this attach to the take up end that is wound around the shaft? 2) Is the slug engaged with the coil when the FM indicator is maximum or minimum frequency? 3) What is the exact function of this variable inductor? Thank you, Paul. More pictures on the bottom of page: http://www.ppinyot.com/k/korting/korting.htm UPDATE - I restrung the variable inductor slug with out the little coil spring. The slug draws in as the FM band goes down in frequency.
Omer Suleimanagich 22.May.09	2 korting: 1047; Novum Paul, Could you post some pictures.
Paul Pinyot 28.May.09	3 Need FM alignment in English. Gentlemen, I have fully restored this chassis and got through the AM alignment section by using other radio model procedures. I have rebuilt all three Electrostatic tweaters. WOW what a sound. Nice and strong. Great treble and powerful bass. I am always impressed with the clean powerful sound of these European radios. But I am not satisfied with my FM alignment. I find it rather difficult translating German to English or making a reasonable cross reference between the different radios printed in English and this particular FM tuner. In short, “it just does not feel correct”. Could some one provide an English Alignment procedure or direct me to a similar chassis that employs the same FM tuner with the alignment in English? I would consider purchasing proper documentation if available. Sam’s Publishing only has a schematic with out the alignment procedure. Thank you in advance, Paul.
Georg Beckmann 28.May.09	4 Circuit diagram manual Hi Paul, it seems that you have the german docs to this radio. Would it be possible to upload this here in the RADIOMUSEUM. Because this is missing. If you can't do it, I can assist you. If you send me the an email with the scans of the German alignment advise, I can translate it, so that you can work with it. Greetings from Germany Georg
Paul Pinyot 28.May.09	5 Using the Bremen alignment chart for the FM tuner. Geog, You are very gracious to offer to translate. I have been using the procedure from the Bremen 821 http://www.radiomuseum.org/r/korting_bremen_82106.html . The Bremen has each FM tuner slug and trimmer capacitor clearly identified. I am having the most difficulty with the FM alignment table (chart). Specifically the last two columns of instructions on the right. I have NO problems with the AM section. I made a request for the schematic and was hoping some one would post the proper documents. If I could cut and paste the Bremen text into the Google Translator I would. But the text is a picture and not ASCII code. I appreciate you help! Paul.
Georg Beckmann 28.May.09	6 first trial Hi Paul, here a first trial. I didn't find the procedure, how to do the decribed damping of the various resonat circuits, perhaps a parallel resistor. Georg
Paul Pinyot 28.May.09	7 Thank you Georg, That is beautiful! Thank you. I will try this alignment soon. I saw some dampening in an other procedure. I will employ that dampening method. Thanks again, Paul.
Hans M. Knoll 29.May.09	8 Whats damping on if-align. Hello friends. our member olaf have shows two AM and one FM align. AM 1and 2 #1 #2 and FM on second part (AM) you can see, whats damping and how to do! hans
Paul Pinyot 29.May.09	9 Hans to the rescue Hans to the rescue, Those are helpful links. I sent the link into the Google Translator and now have a useful supplement to Georg’s translated table. I am in the shop at this time and will attempt the alignment tonight. I will let you know how it goes. *Update* - It is 2300 hrs here in Pittsburgh PA and I have completed the alignment. I use a combination of Georg's translation, Olaf's procedures, Korting Bremen 821/06 documents and Korting Hamburg chassis 25571 schematic for the ECH81 and EBF89 circuitry. The 10.7 MHz IF was the most difficult to optimize. Finding the electrical points for L14 Zero Crossing adjustment was the most time consuming. The FM tuner was a "Piece of Cake" with Georg's translation! Thank you all whom contributed. I would prefer the proper procedure for the Korting 1047 US Export. However, "Beggers can not be Choosers" as the saying goes. RM.org to the Rescue! Thanks, Paul.
Hans M. Knoll 29.May.09	10 good thing! Hello Paul and Georg! Yes whe can, if whe all want ! see post # 3 on top !!!! hans .
