• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78167

• • alternative name: Dietz & Ritter GmbH, Dr.

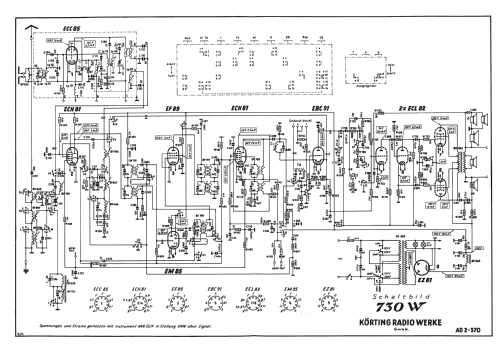

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 ECH81 EM85 EBC91 ECL82 ECL82 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz; Special type of reception - please describe.

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 240 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Syntektor 730W - Körting-Radio; Leipzig, später

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 720 x 400 x 280 mm / 28.3 x 15.7 x 11 inch

• Notes

• Synchrodetektor

  Paralleltype zum Neckermann Konzertmeister 111/32.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.
