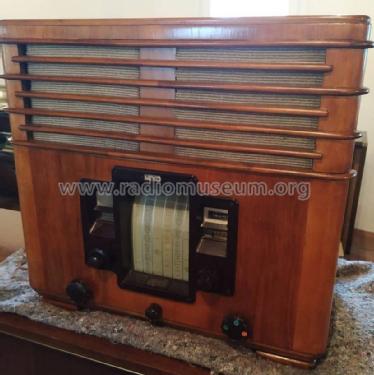

Ultramar SB7360W

• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2411

• • alternative name: Dietz & Ritter GmbH, Dr.

• Picture
• Schematics

Previous Next

Previous Next

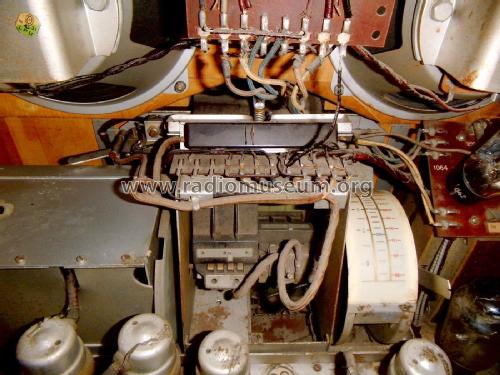

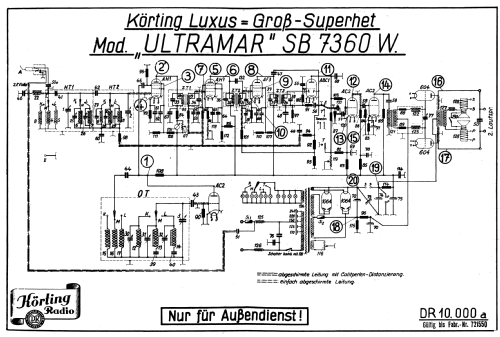

Click on the schematic thumbnail to request the schematic as a free document.

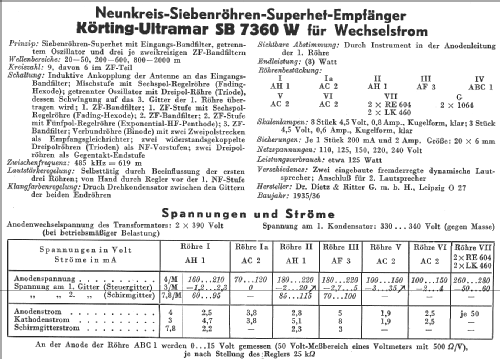

• Number of Tubes
• 11

• Valves / Tubes
• AH1 AC2 AH1 AF3 ABC1 AC2 AC2 RE604 RE604 RGN1064 RGN1064

• Main principle
• Superheterodyne (common); ZF/IF 485 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ultramar SB7360W - Körting-Radio; Leipzig, später

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 539 x 325 mm / 23.2 x 21.2 x 12.8 inch

• Notes
•

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 580.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Funkgeschichte der GFGF (9286)

• Literature/Schematics (1)
• Radio-Großkatalog 1935/36

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
