Magi-Matic Fine Line Deluxe Console Super Fringe 121-24 Ch= 79-3
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 285294
From Andrew McCallum.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6ES8 6BL8 6BY7 6EH7 6EJ7 6CK6 6CS6 6BL8 6BX6 6BM8 6BM8 6BL8 6BL8 6CM5 6AL3 1S2 AW53-80 or 21ALP4
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200-265 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Magi-Matic Fine Line Deluxe Console Super Fringe 121-24 Ch= 79-3 - Kriesler Radio Company;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 29.5 x 16.5 x 33 inch / 749 x 419 x 838 mm
- Notes
-
The Kriesler 121-24 is a 21" television receiver that tunes the pre 1961 10 Australian TV channels.
- Mentioned in
- - - Manufacturers Literature (Kriesler manufacturers sevice data sheets for 79-3 chassis.)
- Literature/Schematics (1)

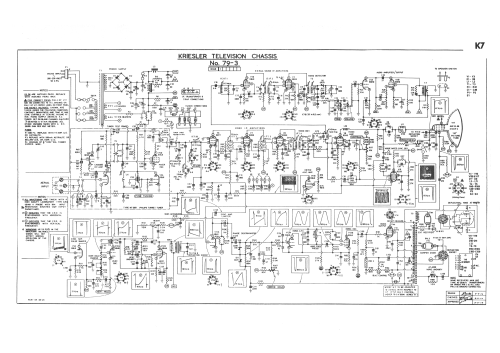

- -- Schematic (JR Publications Television Service Handbook Page K7)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
