Champion Short Wave Receiver
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1933/1934
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 279912
-
- alternative name: Wholesale Radio

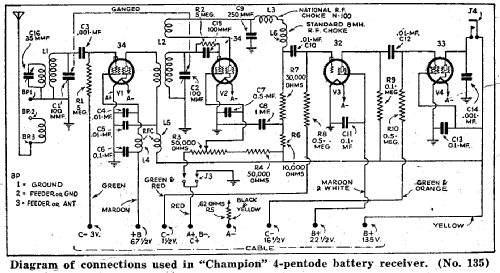

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Dry Batteries / 2 & 22.5 & 67.5 & 135 & -1.5 & -3 & -16.5 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 0.7 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Champion Short Wave Receiver - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 12.5 x 8.75 x 6 inch / 318 x 222 x 152 mm
- Notes
-
The Lafayette Short Wave "Champion" is an all-pentode TRF receiver operated from a two-volt "Air-cell" battery for the filaments and dry batteries.
Wavelength change by six-prong plug-in type coils, by two:
- 14 to 24 meters (furnished with the receiver)
- 23 to 41 meters
- 38 to 70 meters
- 65 to 115 meters
- Literature/Schematics (1)
- Short wave Craft for January 1934, page 539
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
