F-39 Dual Wave

Lafayette Radio & TV Corp; New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 159773
    • alternative name: Wholesale Radio

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: F-39 Dual Wave - Lafayette Radio & TV Corp; New
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 23 x 47.5 x 18.25 inch / 584 x 1207 x 464 mm
  • Notes

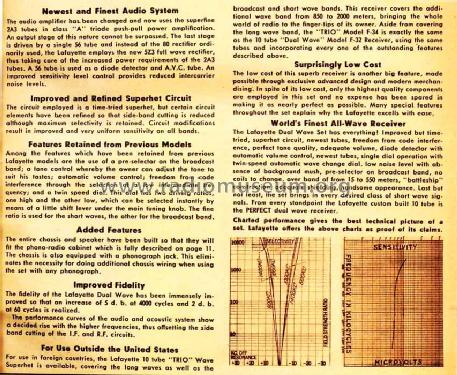

  • The Lafayette Dual Wave models F-32, F-33 (both = chassis and LS only for a dimension of 13.5" x 9" x 10"), F-36, F-37 and with phonograph F-39, F-41 and F-42 are 10 tubes custom-built AC Superheterodynes. AVC (Automatic Volume Control), built in antenna and tone control. Broadcast 220-550 m SW from 15 m. For broadcast, a pre-selector circuit is employed in conjunction with a low frequency IF amplifier. Class "A" triode push-pull power amplification. Twin speed dial (shift lever under the main tuning knob). This family includes also the "Trio Wave Superhets" with principally the same chassis plus long waves as F-34 (Chassis only), F-35 and F-40 (phono radio). We have not found a schematic source for this model family.

    The model Dual Wave F-39 with a Capehart Record Changer in special Phono-Radio De Luxe Console (reference is to page 14 but there is no such model picture) is listed at $ 350.00 but the Lafayette price is $ 154.75. See details for the models of this catalog.
  • Price in first year of sale
  • 155.00 $
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
