T-769 B (T769B)

ID = 114079

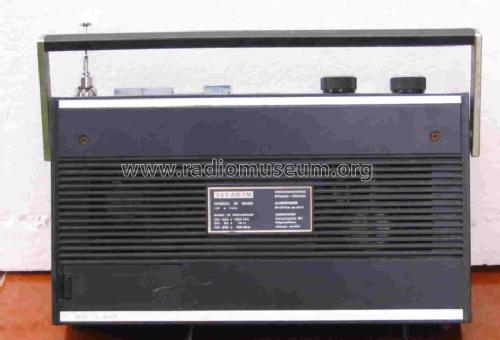

Lavis SA; Spain: T-769 B [Radio] ID = 306112 931x700

Country: Spain	Manufacturer/Brand: Lavis SA; Spain
Year: 1971	Type: Radio or Tuner
Transistors	9:
schematic requested

Principle	Super-Heterodyne (Super in general)
Wave bands	Broadcast, Short Wave plus FM.
Power type and voltage	Dry Batteries / 6 × 1,5 Volt
Loudspeaker/pwr.out	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / 1 W / Ø 10.2 cm = 4 inch
from Radiomuseum.org	Model: T-769 B
Material	Modern plastics (no Bakelite or Catalin)
Dimensions (WHD)	275 x 155 x 70 mm / 10.8 x 6.1 x 2.8 inch

This model was suggested by Ramon Gancedo.
