Manuela Ch= 666-Stereo

Manuela Ch= 666-Stereo; Leinetal GmbH & Co. (ID = 320850) Radio
Use red slider bar for more.
Manuela Ch= 666-Stereo; Leinetal GmbH & Co. (ID = 320850) Radio
Leinetal GmbH & Co.: Manuela Ch= 666-Stereo [Radio] ID = 320850 370x263

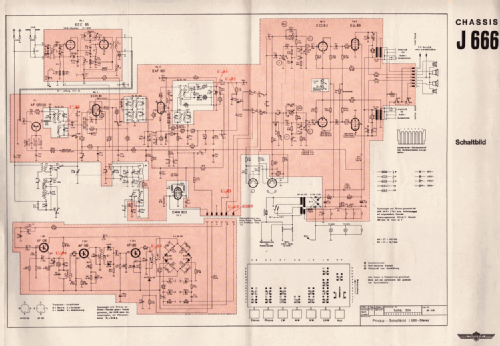

Select picture or schematic to display from thumbnails on the right and click for download.
For model Manuela Ch= 666-Stereo, Leinetal GmbH & Co. KG, Kreiensen

Country:  Germany
Manufacturer / Brand:  Leinetal GmbH & Co. KG, Kreiensen
Year: 1967/1968 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EAF801 ECC83 EMM803 ELL80
Semiconductors (the count is only for transistors) 1:
Principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Manuela Ch= 666-Stereo - Leinetal GmbH & Co. KG,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1130 x 790 x 370 mm / 44.5 x 31.1 x 14.6 inch
Notes Rundfunk-Chassis = Imperial 666-Stereo, Stereo-Decoder R101 nachrüstbar, Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W;
Phono-Chassis = PE66 oder Philips AG1035.
Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
Source of data Handbuch VDRG 1967/1968

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
