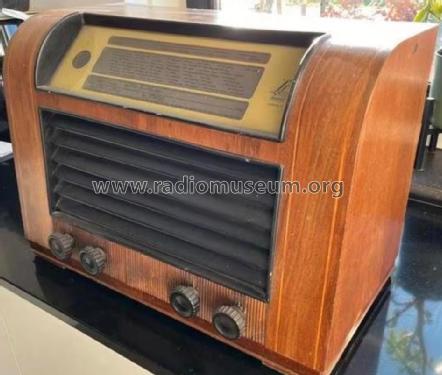

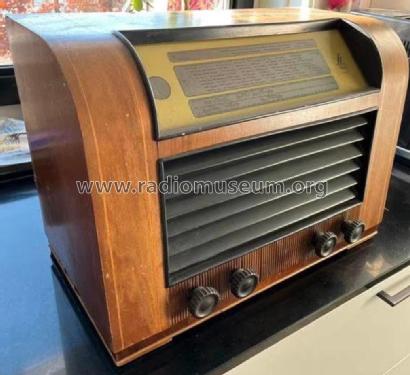

Kardinal 47

• Country
• Denmark

• Manufacturer / Brand
• Linnet & Laursen (LL) A/S; København

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103037

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• CCH35 EF39 EBC33 CL33 EM34 CY31

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kardinal 47 - Linnet & Laursen LL A/S;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 390 x 290 mm / 21.7 x 15.4 x 11.4 inch

• Notes

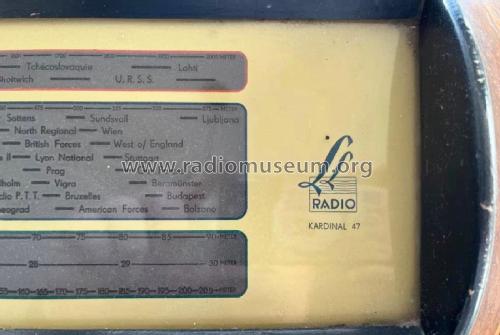

• 3 Kurzwellenbänder: KB1 15-30 m, KB2: 30-90 m, KB3: 65-205 m.
