D614

D614 ; Lloyd's Electronics; (ID = 955019) Radio D614 ; Lloyd's Electronics; (ID = 955020) Radio
Use red slider bar for more.
D614 ; Lloyd's Electronics; (ID = 955019) Radio
Lloyd's Electronics;: D614 [Radio] ID = 955019 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model D614, Lloyd's Electronics; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Lloyd's Electronics; Chicago, IL
Year: 1972 ?? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM.
Details Special Tape or Cassette-Format
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: D614 - Lloyd's Electronics; Chicago,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 520 x 120 x 310 mm / 20.5 x 4.7 x 12.2 inch

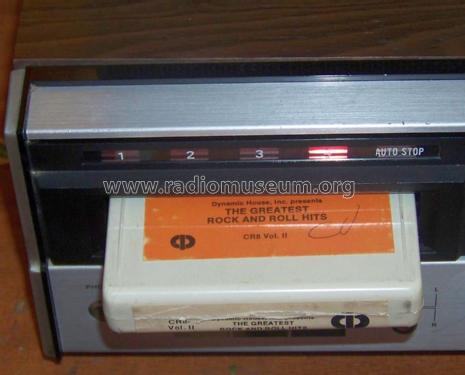

Notes Eingebauter Rekorder für 8-Spur-Audiocassetten.
Eingänge: AUX, 2 Mikrofone, Plattenspieler, Antenne.
Ausgänge: 2 Lautsprecher, 2 weitere Lautsprecher 16 Ohm, Kopfhörer.
AFC für UKW.
Source of data - - Data from my own collection

Model page created by Christian Enzesberger. See "Data change" for further contributors.
