Hellas 552W EM4
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2808
-
- alternative name: Löwe Radio

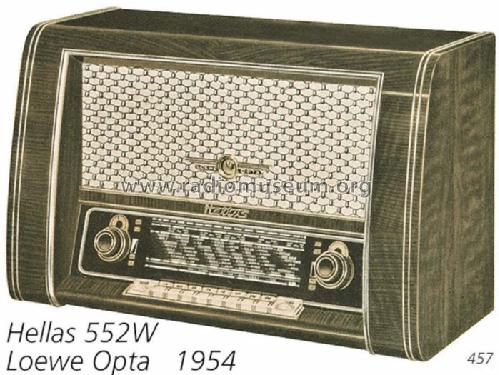

Bild aus ebay
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 11 AM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Hellas 552W [EM4] - Loewe-Opta; Deutschland
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 640 x 400 x 315 mm / 25.2 x 15.7 x 12.4 inch
- Notes
-
Variable Bandbreite; FS-Ton.
Siehe auch Loewe Opta Hellas 552W mit EM34 und Hellas Plastik 552W/P mit 3D-Klang.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Price in first year of sale
- 398.00 DM
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
