Kora-Luxus 4871T/W

Kora-Luxus 4871T/W; Loewe-Opta; (ID = 243766) Radio
Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001365) Radio Kora-Luxus 4871T/W; Loewe-Opta; (ID = 374586) Radio
Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001358) Radio Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001359) Radio
Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001360) Radio Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001362) Radio
Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001363) Radio Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001366) Radio
Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001367) Radio Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001368) Radio
Use red slider bar for more.

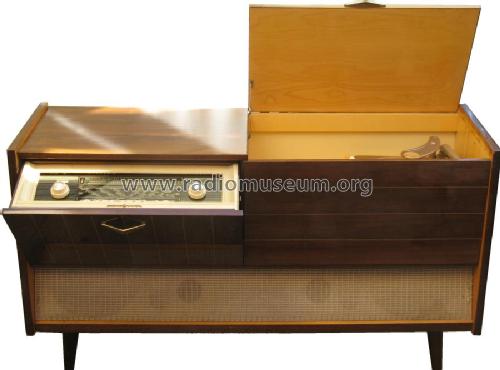

Kora-Luxus 4871T/W; Loewe-Opta; (ID = 1001365) Radio
Loewe-Opta;: Kora-Luxus 4871T/W [Radio] ID = 1001365 900x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kora-Luxus 4871T/W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM84 EBC91 EL84 EL84
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker 6 Loudspeakers
Power out
from Radiomuseum.org Model: Kora-Luxus 4871T/W - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1340 x 835 x 425 mm / 52.8 x 32.9 x 16.7 inch
Notes Rectifier: B250/C125. Dial lamps: 2x 7V/0,3A.
Net weight (2.2 lb = 1 kg) 48 kg / 105 lb 11.6 oz (105.727 lb)
Price in first year of sale 898.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60
