• Country
• Germany

• Manufacturer / Brand
• Opta-(Spezial) (siehe auch Loewe-Opta)

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72612

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF85 EC92 ECH81 EF41 EM34 EF41 EABC80 EL12

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 10 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker

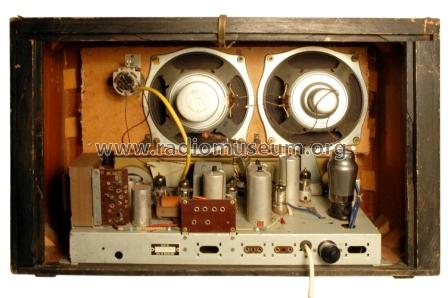

• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

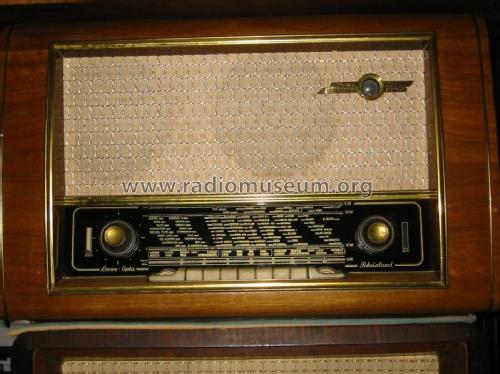

• Model: Rheinland 3154W - Opta-Spezial siehe auch Loewe-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 400 x 290 mm / 24.8 x 15.7 x 11.4 inch

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 399.00 DM

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Siegmund. See "Data change" for further contributors.
