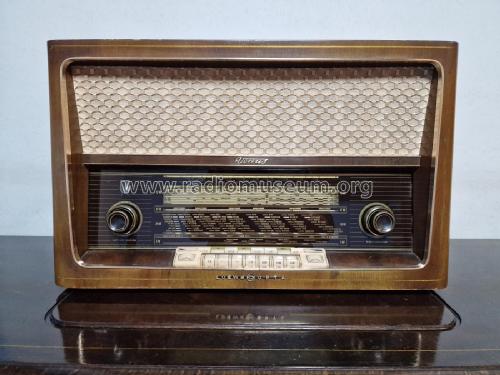

Venus 1791W

Venus 1791W; Loewe-Opta; (ID = 1663002) Radio

Venus 1791W; Loewe-Opta; (ID = 1663006) Radio

Venus 1791W; Loewe-Opta; (ID = 1663008) Radio

Venus 1791W; Loewe-Opta; (ID = 17549) Radio
Venus 1791W; Loewe-Opta; (ID = 273422) Radio Venus 1791W; Loewe-Opta; (ID = 273418) Radio
Venus 1791W; Loewe-Opta; (ID = 49123) Radio Venus 1791W; Loewe-Opta; (ID = 57079) Radio
Venus 1791W; Loewe-Opta; (ID = 273419) Radio Venus 1791W; Loewe-Opta; (ID = 273420) Radio
Venus 1791W; Loewe-Opta; (ID = 273421) Radio Venus 1791W; Loewe-Opta; (ID = 592524) Radio
Venus 1791W; Loewe-Opta; (ID = 592525) Radio Venus 1791W; Loewe-Opta; (ID = 592526) Radio
Use red slider bar for more.
Venus 1791W; Loewe-Opta; (ID = 273422) Radio
Loewe-Opta;: Venus 1791W [Radio] ID = 273422 876x645
Select picture or schematic to display from thumbnails on the right and click for download.
For model Venus 1791W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1956–1958 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 ECL82 ECL82
Principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Venus 1791W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 665 x 400 x 285 mm / 26.2 x 15.7 x 11.2 inch
Notes ZF auch 464 kHz; drehbare Ferritantenne.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 399.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
