12P3; Lorenz; Berlin, (ID = 104314) Radio

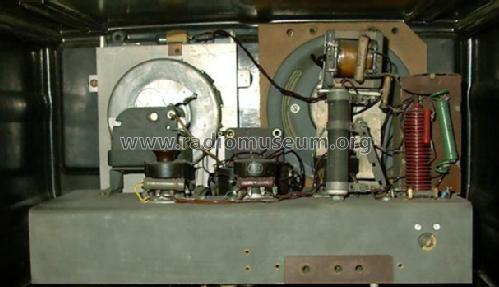

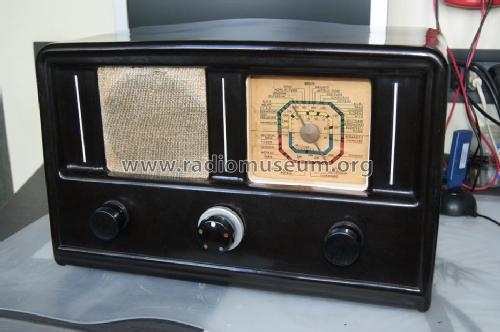

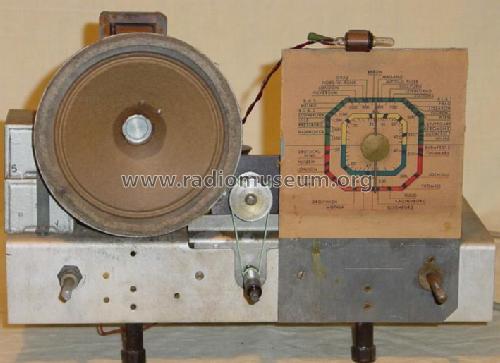

Lorenz; Berlin,: 12P3 [Radio] ID = 104314 674x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model 12P3, Lorenz; Berlin, Zuffenhausen u.a.

Country:  Germany
Manufacturer / Brand:  Lorenz; Berlin, Zuffenhausen u.a.
Brand

SEL
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RV12P2000 RV12P2000 RV12P2000
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 115/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 12P3 - Lorenz; Berlin, Zuffenhausen u
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 250 x 230 mm / 15.4 x 9.8 x 9.1 inch
Notes Werk Hannover.
Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Price in first year of sale 260.00 RM
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk Heft 29 von 1947
Mentioned in Funkgeschichte der GFGF (9503)
