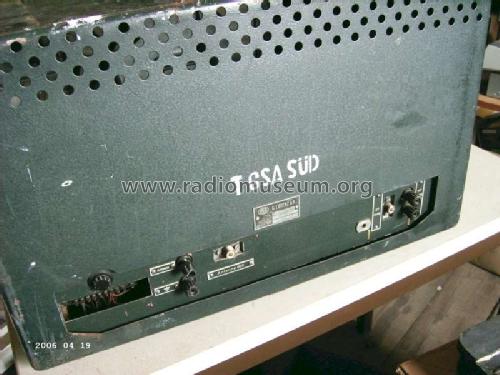

Kurzwellenempfänger E5-8,5 6P203A5 (6 P 203 A 5)


Country: Germany Manufacturer/Brand: Lorenz; Berlin, Zuffenhausen u.a.
Year: 1958 – 1965 Type: Receiver used for civil commercial purposes, e.g. point-to-point maritime or aviation communications, used or second hand sets often used by radio amateurs. Often used also for military communications, partly special variants to military specifications.Communication Receiver (also Amateur) Mod.-ID = 78642 previous | Result List | next | New search for Radios etc. Schematics etc.: 0 (for members) Principle Superhet - normally without a preamplification stage (as far as known). Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne. Normalement sans préamplification de HF.
Superhet ohne Vorstufe.
Nicht immer war bei der Erfassung klar, ob der Empfänger eine Vorstufe aufweist oder nicht. Im Zweifelsfall kam das Gerät in diese Kategorie.
Super-Heterodyne (Super in general); IF-Freq. 472 kHz; 2 AF-stage(s)

Wave bands An exclusivly short wave receiver with probably several ranges and/or band spreading. Un recepteur exclusif pour des gammes d`ondes courtes - probablement avec plusieurs bandes et/ou étaleur de bande.
Reiner Kurzwellenempfänger. Möglicherweise sind mehrere Bänder und/oder Bandspreizung (KW-Lupe) möglich, doch fehlten bei der Erfassung diese Angaben.
Short Wave (SW only)

Power type and voltage AC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Trafo ist nicht immer mit Primär- undSekundärwicklungen versehen. Dadurch kann das Chassis ein gefährlichesPotential führen.
Alternating Current supply (AC) / 110/220 Volt

Loudspeaker/pwr.out Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
/ Ø 5 cm = 2 inch

from Radiomuseum.org Model: Kurzwellenempfänger E5-8,5 6P203A5 (6 P 203 A 5) Material Metal case.
Caisse en métal.
Gerät, dessen Gehäuse aus Metall gefertigt ist. Es kann sich um verschiedenartige Metalle und Oberflächenbearbeitungen handeln. Ist es hingegen nur ein Chassis, so erhält das Gerät eine andere Bezeichnung.
Metal case

Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 542 x 304 x 396 mm / 21.3 x 12 x 15.6 inch
Valves / Tubes 11: EK90     (more for members)
Notes Coverage 1500 to 8500 kHz in five ranges, AM/CW/FSK (BFO), variable IF filter 0.3 to 6.0 kHz, S-Meter, noise limiter, line out. Mainly used in German police point to point applications and weather service. Also part of the radioteletype system Lorenz 6P304.

This model was suggested by Martin Bösch.
