• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2988

• • Brand: SEL

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1264 RENS1374d RGN1064

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

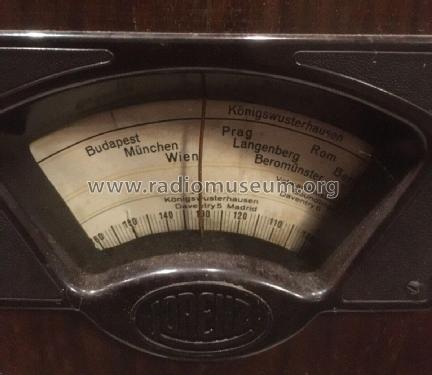

• Model: München K33W Sp - Lorenz; Berlin, Zuffenhausen u

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 330 x 420 x 220 mm / 13 x 16.5 x 8.7 inch

• Notes

• KW = 18-65 m. Baugleich mit Tefag K133W. Beide werden gemeinsam auf Schaltplänen geführt, was zu Missverständnissen Anlass geben kann

  Preis ohne Röhren, zusätzlich Röhrensatz Preis: 33,50 RM

• Price in first year of sale
• 117.00 RM +

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Schenk-Regelien
