Super 200GW (A)
ID = 3039
 |
 |
 |
 |
Lorenz; Berlin,: Super 200GW [Radio] ID = 1002404 820x615
|
|
||||
|
Brand
|
 |
||||
|---|---|---|---|---|---|
| Year: 1937/1938 | Type: Radio - or past WW2 tuner | ||||
| Valves / Tubes | 5: CK1 CF3 CBC1 CL4 CY1 |
| Principle | Super-Heterodyne (Super in general); IF-Freq 468 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 110-240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Super 200GW - Lorenz; Berlin, Zuffenhausen u |
| Material | Wooden case |
| Dimensions (WHD) | 560 x 310 x 290 mm / 22 x 12.2 x 11.4 inch |
| Notes | Feldst.Anz.; var.BBr.; aut.Feineinstellung |
| Net weight (2.2 lb = 1 kg) | 14.5 kg / 31 lb 15 oz (31.938 lb) |
| Price in first year of sale | 251 RM |
| Collectors' prices | 5 Collector prices (for members Radiomuseum.org) |
| Source of data | Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb |

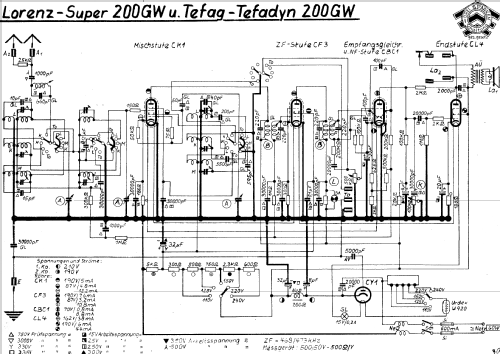

| Circuit diagram reference | Lange+Schenk+FS-Röhrenbestückung |
