• Country
• Germany

• Manufacturer / Brand
• Maesel + Roth KG;Frankfurt/M.

• Year
• 1977

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 126571

• • Brand: Maro

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

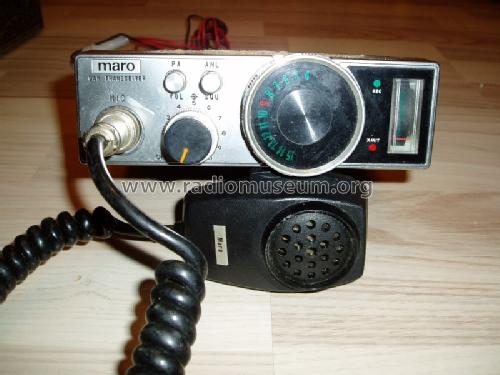

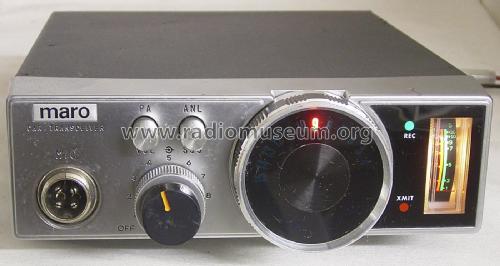

• Model: Maro XCB112 - Maesel + Roth KG;Frankfurt/M.

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 210 x 48 x 160 mm / 8.3 x 1.9 x 6.3 inch

• Notes

• Mobilfunkgerät. 12 Quarz-Kanäle im 27-MHz-Band, Rauschsperre, einstellbarer Störbegrenzer, S-/RF-Meter. Handmikrofon im Lieferumfang.

  FTZ Nr. PR/27-308 / M77

• Price in first year of sale
• 322.00 DM

• Mentioned in
• Funkschau (6.1977)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
