For model Lone Ranger 104, Majestic Radio & Television Co.,(post 1932):
eBay 130697505551

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1951 Type: Broadcast Receiver - or past WW2 Tuner

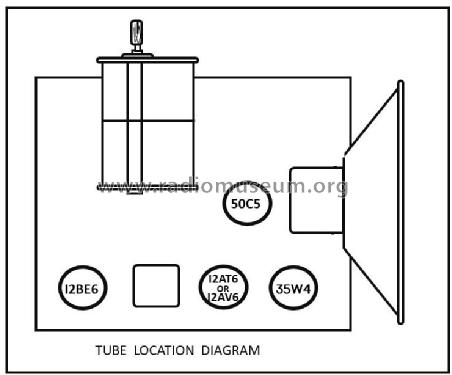

Valves / Tubes 4: 12BE6 12AT6 or 12AV6 50C5 35W4
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Lone Ranger 104 - Majestic Radio & Television Co
Material Moulded (Bakelite or Plastics)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Notes Rider's says Rudolph and Lone Ranger (as for Airline/Montgomery Ward 05GCB-1540A and 1541A), but Machine Age shows similar case but different decoration (flower).
Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Mentioned in The Radio CollectorGrinder, 1995

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
