Wireless Receiver CM 294C
Marconi Wireless Telegraph Co. of America
- Country
- United States of America (USA)
- Manufacturer / Brand
- Marconi Wireless Telegraph Co. of America
- Year
- 1917
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 204057
-
- alternative name: American Marconi || Marconi, American
- Brand: Marconiphone

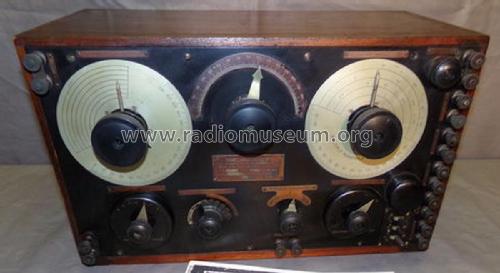

Picture from Dan Dames
Picture from Dan Dames
Picture from Dan Dames
Picture from Dan Dames
Picture from Dan Dames
Picture from Dan Dames

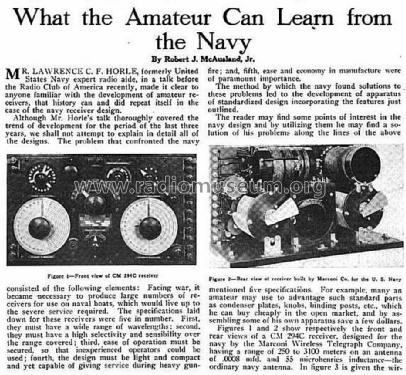

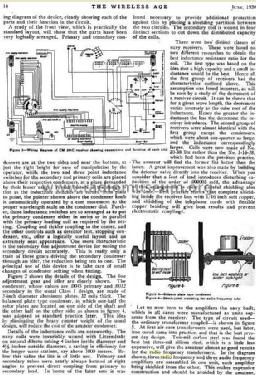

June 1920 The Wireless Age magazine page 13
June 1920 The Wireless Age magazine page 13
June 1920 The Wireless Age magazine page 13
June 1920 The Wireless Age magazine page 13
June 1920 The Wireless Age magazine page 15
- Main principle
- Tuner pre 1926 (not a wave trap)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Wireless Receiver CM 294C - Marconi Wireless Telegraph Co.
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- The Department of the Navy CM 294C was built by the Marconi Wireless Telegraph Company. The receiver covered the range of 250 to 3,100 meters on an antennae of .0008 mfd and 55 microhenries inductance-the standard Navy antennae.
- Literature/Schematics (1)
- June 1920 The Wireless Age magazine page 13
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
