• Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 73183

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC)

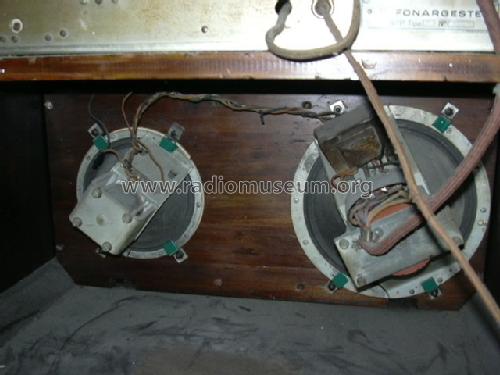

  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Fonargeste - Marelli Radiomarelli; Sesto
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Alternative tubes 145 (45), 180 (80)

    Fonargeste is indicated on the unit (type plate on the chassis), a circuit diagram erroneously calls the model Fonoargeste.

    See also model Argeste without record player.

  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
