National Panasonic AM 7 Transistor R-126

National Panasonic AM 7 Transistor R-126; Panasonic, (ID = 1236669) Radio National Panasonic AM 7 Transistor R-126; Panasonic, (ID = 1236670) Radio
National Panasonic AM 7 Transistor R-126; Panasonic, (ID = 1236671) Radio National Panasonic AM 7 Transistor R-126; Panasonic, (ID = 1236672) Radio
National Panasonic AM 7 Transistor R-126; Panasonic, (ID = 1236673) Radio
Use red slider bar for more.

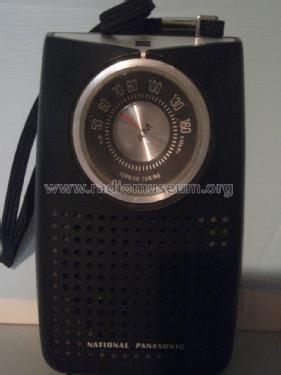

National Panasonic AM 7 Transistor R-126; Panasonic, (ID = 1236669) Radio
Panasonic,: National Panasonic AM 7 Transistor R-126 [Radio] ID = 1236669 933x1244
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Panasonic AM 7 Transistor R-126, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Etsy Shop carriesattic Item 98796563

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1960 ?? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: National Panasonic AM 7 Transistor R-126 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 3 x 5 x 1.75 inch / 76 x 127 x 44 mm
Notes

National Panasonic AM 7 Transistor Pocket Radio Model R-126.

Model page created by Franz Scharner. See "Data change" for further contributors.
