• Year
  • 1955–1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 70532
    • alternative name: Matuscac
    • Brand: RFWS Rundfunkwerkstätten Matuszak

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 8 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

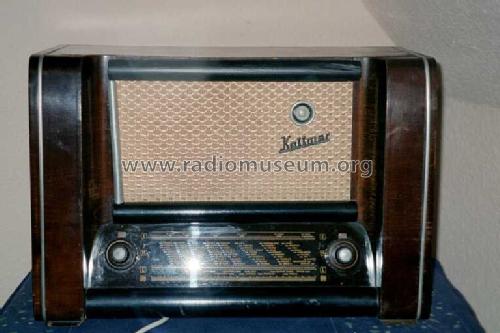

  • Model: Kottmar 543WU - Matuscak Matuszak; Rundfunkbau
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 660 x 480 x 440 mm / 26 x 18.9 x 17.3 inch
  • Notes
  • Vorstellung Messe 1955.
  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb

 Collections | Museums | Literature

Collections

The model Kottmar is part of the collections of the following members.

 Forum

Forum contributions about this model: Matuscak Matuszak;: Kottmar 543WU

Threads: 1 | Posts: 1

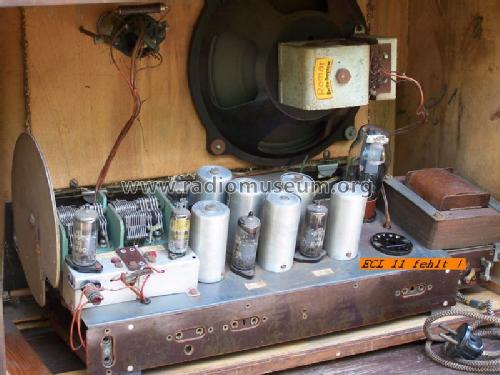

Es existieren Geräte mit gleicher Typenbezeichnung, die als Endröhre mit einer ECL 11 ausgestattet sind, wobei
die Triode nicht beschaltet wurde. Es ist wahrscheinlich, daß diese Ausführung  nur im Jahr 1954 hergestellt wurde.
Die Rückwand dieser Geräte ist, was den Aufdruck und insbesondere das Firmenlogo betrifft, ebenfalls abweichend.

Jürgen Dittrich, 22.Aug.07
