BBO840

BBO840; MBLE, Manufacture (ID = 1290492) Radio

BBO840; MBLE, Manufacture (ID = 1290493) Radio

BBO840; MBLE, Manufacture (ID = 1290490) Radio

BBO840; MBLE, Manufacture (ID = 1290491) Radio

BBO840; MBLE, Manufacture (ID = 730707) Radio
BBO840; MBLE, Manufacture (ID = 56159) Radio BBO840; MBLE, Manufacture (ID = 387551) Radio
BBO840; MBLE, Manufacture (ID = 56160) Radio BBO840; MBLE, Manufacture (ID = 56476) Radio
BBO840; MBLE, Manufacture (ID = 387552) Radio BBO840; MBLE, Manufacture (ID = 387553) Radio
BBO840; MBLE, Manufacture (ID = 387554) Radio BBO840; MBLE, Manufacture (ID = 387555) Radio
BBO840; MBLE, Manufacture (ID = 1290182) Radio BBO840; MBLE, Manufacture (ID = 1785754) Radio
Use red slider bar for more.
BBO840; MBLE, Manufacture (ID = 56159) Radio
MBLE, Manufacture: BBO840 [Radio] ID = 56159 732x499
Select picture or schematic to display from thumbnails on the right and click for download.
For model BBO840, MBLE, Manufacture Belge ... - see also MAZDA and ADZAM

Country:  Belgium
Manufacturer / Brand:  MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 EF80 EF85 ECF80 EM84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz; 1 AF stage(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: BBO840 - MBLE, Manufacture Belge ... -
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 283 x 190 x 120 mm / 11.1 x 7.5 x 4.7 inch

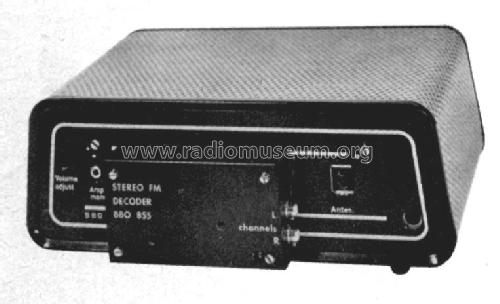

Notes Ratiodetector with two OA79. Sold in kit-form. Related items BBO845, BBO855, BBO846.
Price in first year of sale 1,380.00 Bef
Collectors' prices

Model page created by Georges Van Campenhout. See "Data change" for further contributors.



All listed radios etc. from MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
Here you find 52 models, 46 with images and 28 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
