ML-1000

Image ID = 385524 for Mechanikai ML-1000 Image ID = 385525 for Mechanikai ML-1000
Image ID = 385526 for Mechanikai ML-1000 Image ID = 385527 for Mechanikai ML-1000
Image ID = 385528 for Mechanikai ML-1000 Image ID = 613826 for Mechanikai ML-1000
Image ID = 385524 for Mechanikai ML-1000
Mechanikai : ML-1000 [Receiver-C] ID = 385524 537x700
general view

Country: Hungary Manufacturer/Brand: Mechanikai Laboratórium (ML); Budapest
Year: 1960 ?? Type: Communication Receiver (also Amateur)
Valves / Tubes 27:
schematic requested
Principle Superhet, double/triple conversion; IF-Freq. 1378/78 kHz
Wave bands Short Wave (SW only)
Power type and voltage Powered by external power supply or a main unit. / 110-220 Volt
Loudspeaker/pwr.out - For headphones or amp.
from Radiomuseum.org Model: ML-1000
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 600 x 740 x 50 mm / 23.6 x 29.1 x 2 inch
Notes Commercial receiver covering 1,5 - 30 MHz in 6 ranges (1,5-3 / 3-6 / 6-12 / 12-18 / 18-24 / 24-30 MHz), AM, CW/SSB (BFO).

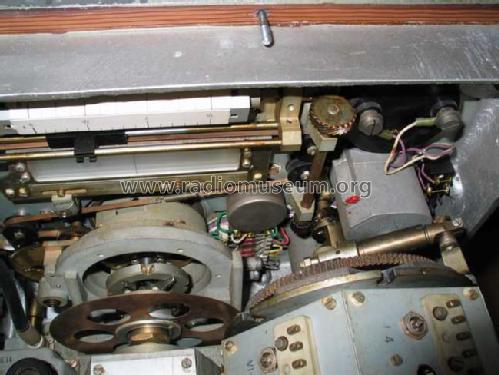

Optical projection dial, IF bandwidths 0,4 / 1,3 / 3 / 6,8 / 12 KHz, three AVC time sonstants 0,2/2/10 seconds, three position noise limiter, AF filters 1,5 / 1,5 / 6 kHz. Swtichable Meter control anode voltages and other voltages and currents.
The receiver comes in three cast aluminium frames:
Power Supply ML1000/A, 10 silicium diodes, 3 tubes OD3/VR150 and 2 “current regulators” 8-24V 0,6A.
Frequency synthesizer ML1000/S, 9 tubes E83F, 3 tubes E88CC, one E81H, one EM80 and one ECC82.
Receiver frame ML1000/V with EF85 EF85 E81H ECC82 ECC802S EBF89 EBF80 E83F ECC802S ECC802S ECL82 ECC82.

This model was suggested by Georges Werts.
