MD1524U/35

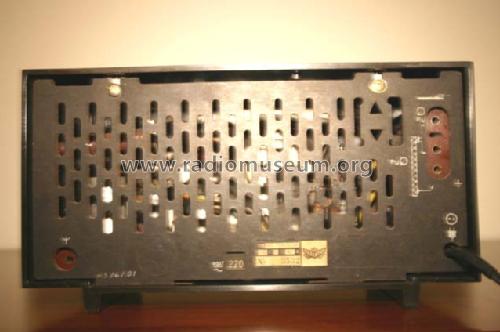

MD1524U/35; Mediator; La Chaux- (ID = 174607) Radio MD1524U/35; Mediator; La Chaux- (ID = 174609) Radio
Use red slider bar for more.
MD1524U/35; Mediator; La Chaux- (ID = 174607) Radio
Mediator; La Chaux-: MD1524U/35 [Radio] ID = 174607 567x377
Select picture or schematic to display from thumbnails on the right and click for download.
For model MD1524U/35, Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1957 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY42
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: MD1524U/35 - Mediator; La Chaux-de-Fonds
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 285 x 155 x 140 mm / 11.2 x 6.1 x 5.5 inch
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Mentioned in Del próprio radio

Model page created by Júlio Branco. See "Data change" for further contributors.



All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 330 models, 269 with images and 125 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
