8-C FM Tuner

8-C FM Tuner; Meissner Mfg. Div., (ID = 391158) Radio

8-C FM Tuner; Meissner Mfg. Div., (ID = 391159) Radio

8-C FM Tuner; Meissner Mfg. Div., (ID = 391160) Radio

8-C FM Tuner; Meissner Mfg. Div., (ID = 391161) Radio

8-C FM Tuner; Meissner Mfg. Div., (ID = 268269) Radio

8-C FM Tuner; Meissner Mfg. Div., (ID = 268270) Radio

8-C FM Tuner; Meissner Mfg. Div., (ID = 268271) Radio
8-C FM Tuner; Meissner Mfg. Div., (ID = 208968) Radio
Use red slider bar for more.
8-C FM Tuner; Meissner Mfg. Div., (ID = 208968) Radio

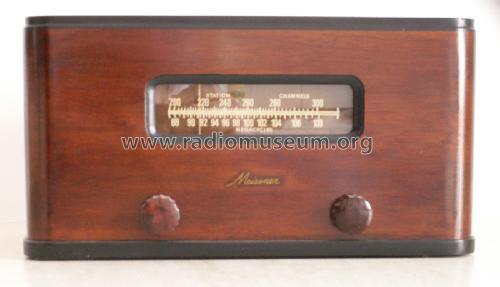

Meissner Mfg. Div.,: 8-C FM Tuner [Radio] ID = 208968 217x172
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8-C FM Tuner, Meissner Mfg. Div., Maguire Industries, Inc. (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Meissner Mfg. Div., Maguire Industries, Inc. (IL)
Year: 1951 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6AG5 6AG5 6BA6 6BA6 6C4 6C4 6AL5 6X5GT
Principle Superhet with RF-stage; ZF/IF 10700 kHz
Wave bands FM Radio only
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 8-C FM Tuner - Meissner Mfg. Div., Maguire
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12 x 8 x 8.75 inch / 305 x 203 x 222 mm
Price in first year of sale 54.00 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in 1951 Newark catalog Nº 51
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 37, Folder 12)

All listed radios etc. from Meissner Mfg. Div., Maguire Industries, Inc. (IL)
Here you find 56 models, 39 with images and 28 with schematics.
