- Country
- Germany
- Manufacturer / Brand
- Mende - Radio H. Mende & Co. GmbH, Dresden
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3585
-
- Brand: System Günther
D_Mende_1936_139WL-Frontansicht
Mende Prospekt "W182 GXXX rlt"

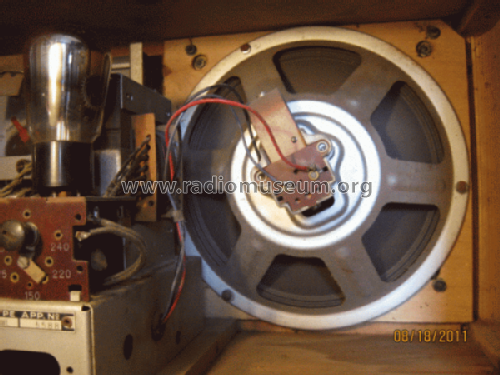

Röhren und Abschirmung entnommen

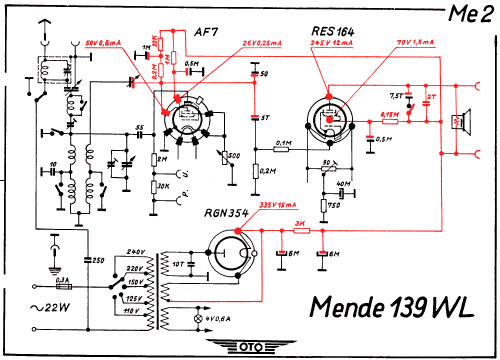

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 139WL - Mende - Radio H. Mende & Co.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 530 x 285 x 260 mm / 20.9 x 11.2 x 10.2 inch
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 139.00 RM
- Source of data
- HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
