200GL
ID = 155887
 |
 |
 |
 |
 |
 |
 |
 |

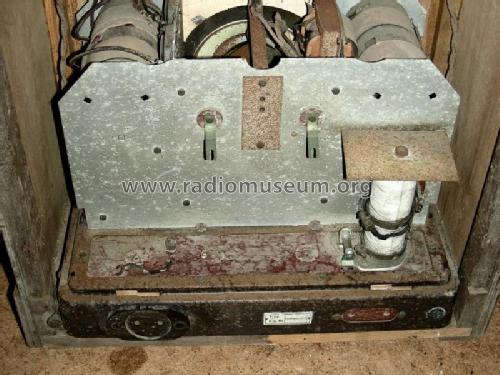

Mende - Radio H. : 200GL [Radio] ID = 620686 525x700
| Country: Germany | Manufacturer/Brand: Mende - Radio H. Mende & Co. GmbH, Dresden |
| Year: 1931 / 1932 | Type: Radio or Tuner |
| Valves / Tubes | 3: RENS1820 RENS1820 RENS1823d |
|---|
| Principle | TRF with reaction (regenerative) |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Power type and voltage | Direct Current supply (DC) / 110-220 Volt |
| Loudspeaker/pwr.out | - - - n.a. / Ø 18 cm = 7.1 inch |
| from Radiomuseum.org | Model: 200GL |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor Tombstone). |
| Dimensions (WHD) | 390 x 470 x 240 mm / 15.4 x 18.5 x 9.4 inch |
| Notes | Röhrensatz unsicher. |
This model was suggested by J Francois BERTRAND.
All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 238 models, 192 with images and 164 with schematics.
